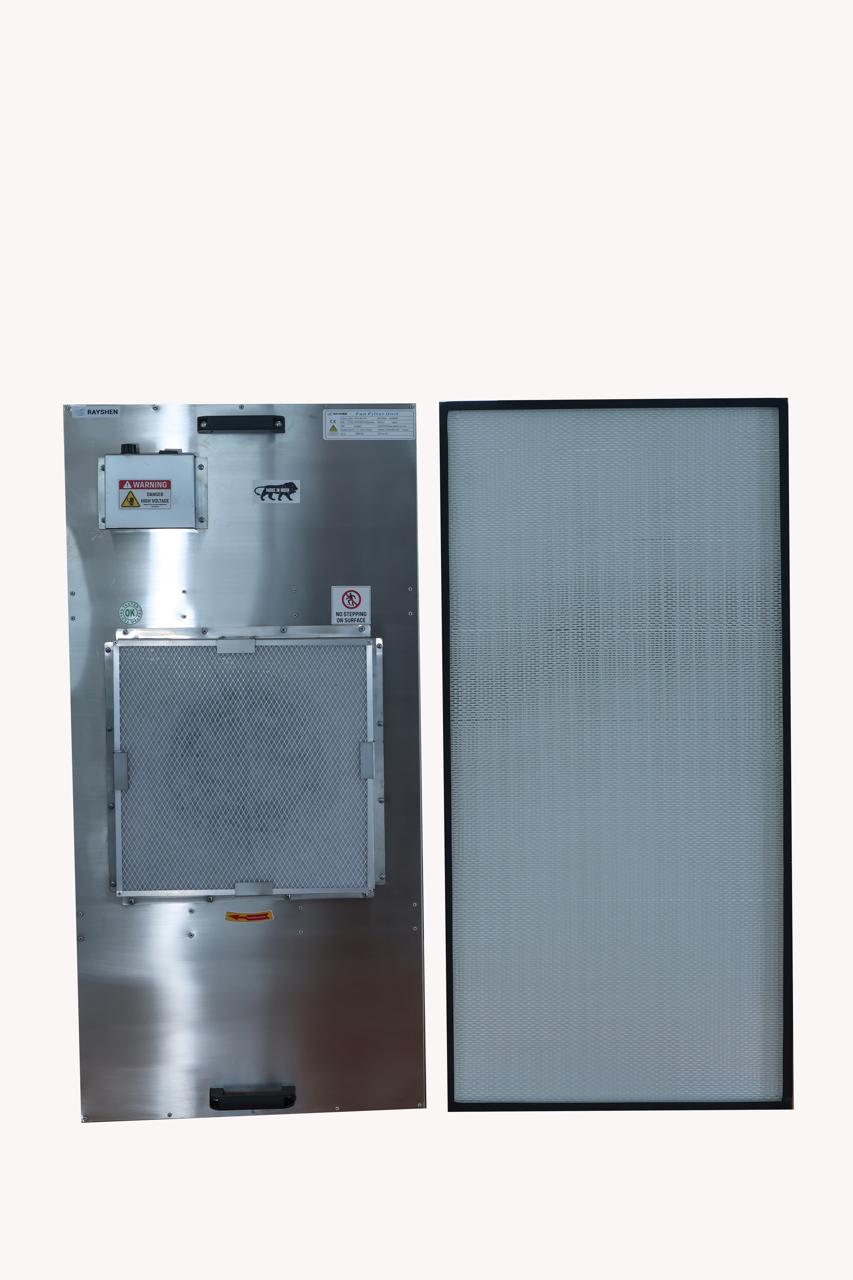

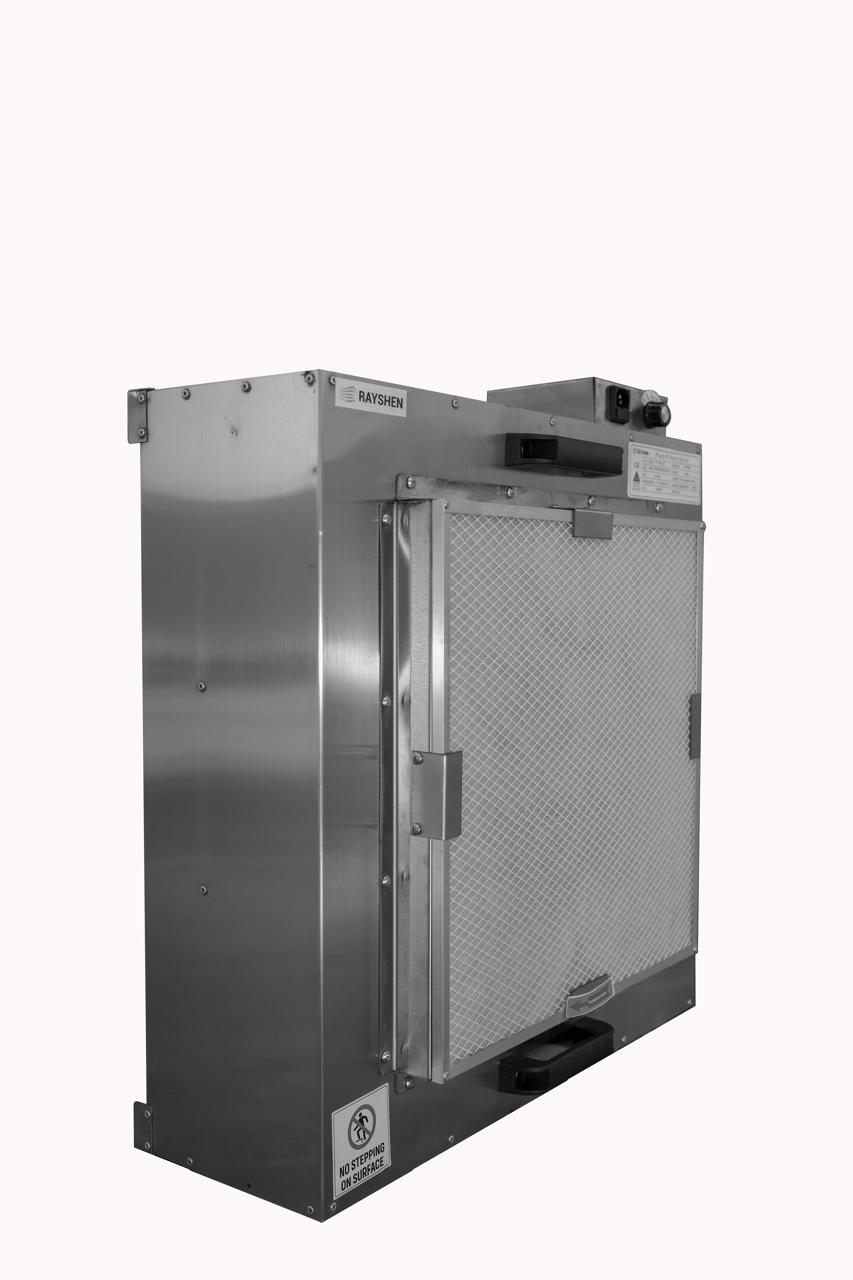

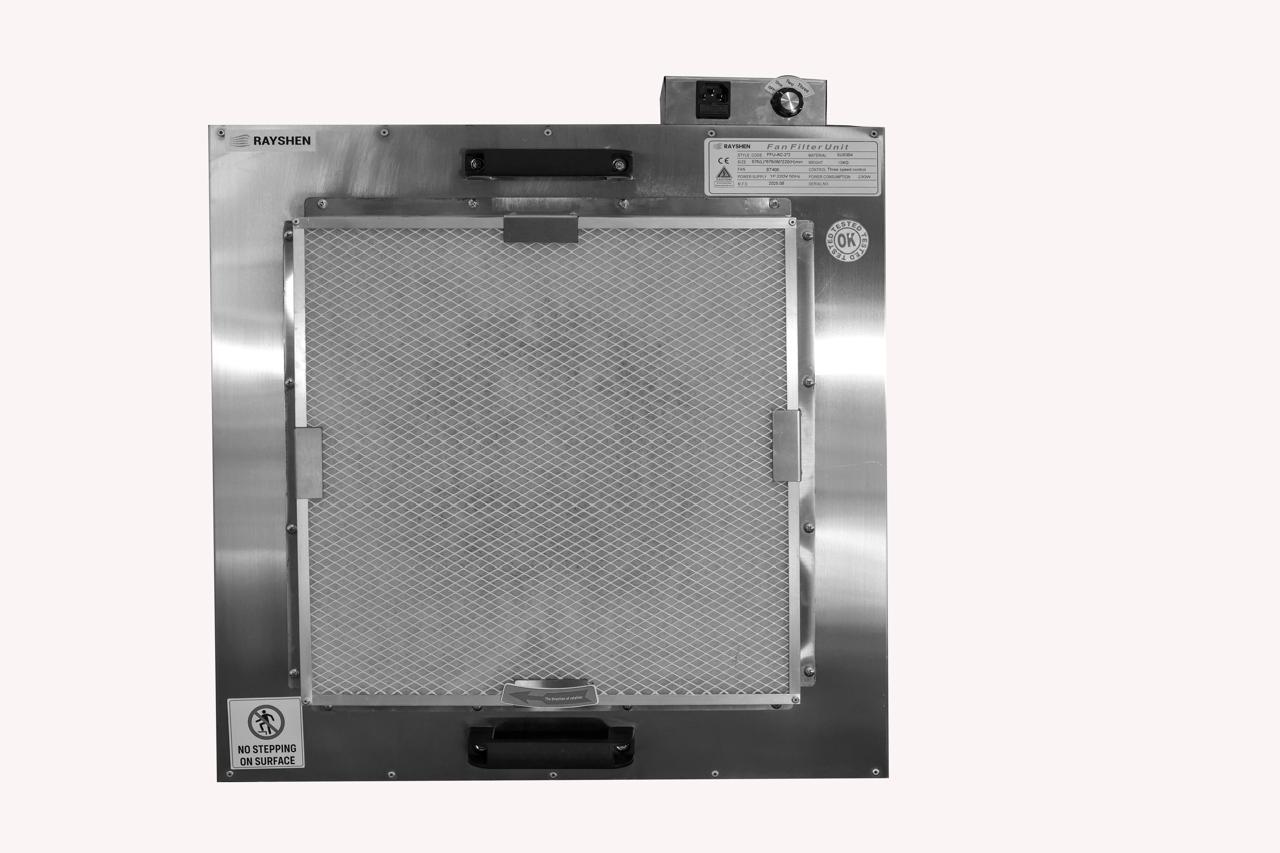

SS Fan Filter Units DC

The Ultimate Guide to SS Fan Filter Units: High-Performance Air Filtration for Sterile Environments

In the critical spheres of pharmaceutical manufacturing, biotechnology, and semiconductor fabrication, air quality is not merely a facility requirement—it is a regulatory mandate. The SS Fan Filter Unit serves as the primary engine of cleanroom infrastructure, ensuring that your production zones maintain the necessary pressure differentials and cleanliness classes required by global authorities like the WHO-GMP, USFDA, and ISO 14644.

At Rayshen, we specialize in the engineering of high-durability, stainless steel filtration solutions. Our SS 304 Cleanroom FFU systems represent the pinnacle of contamination control, blending robust material science with advanced air-handling technology. Whether you are upgrading an existing cleanroom or designing a new facility, selecting the right DC Fan Filter Unit is a decision that dictates your long-term operational efficiency and product yield.

Engineering Excellence: Why Stainless Steel is the Gold Standard

In high-care environments, construction material matters. While powder-coated galvanized steel is suitable for some applications, the SS 304 Cleanroom FFU is the industry preference for environments requiring frequent wash-down protocols, chemical sterilization, and zero-corrosion integrity.

The Chemical and Structural Resilience of SS 304

The choice of Stainless Steel (SS) 304 is rooted in its resistance to the aggressive disinfectants commonly used in sterile suites—such as Hydrogen Peroxide vapor, alcohol-based solutions, and bleach. Unlike epoxy-coated surfaces, which can chip, peel, or harbor micro-cracks over time, a high-grade SS 304 DC FFU for Pharma Labs remains chemically inert. This prevents the release of metallic particulates or paint flakes into the cleanroom atmosphere, maintaining the integrity of the process air.

Precision Manufacturing and Surface Finish

Our fabrication process involves seamless TIG (Tungsten Inert Gas) welding, which eliminates the microscopic crevices where biofilm or bacteria can accumulate. We finish our units with a standardized hairline or mirror polish, ensuring that the SS Fan Filter Unit is as easy to clean as it is durable. This level of hygiene is non-negotiable for manufacturers operating under GMP (Good Manufacturing Practice) standards.

The Synergy of DC Technology and EC Motors

The modern cleanroom demands energy efficiency without compromising airflow volume. This is where the DC Fan Filter Unit outperforms traditional AC motor systems.

The Revolution of the EC Motor FFU

An EC Motor FFU (Electronically Commutated) is the heart of our energy-efficient filtration strategy. By utilizing a brushless DC motor, these units consume significantly less power while providing superior torque control. In a large-scale facility where hundreds of FFUs operate simultaneously, the transition to EC technology can result in a reduction of energy consumption by up to 60%.

Intelligent Airflow Management

One of the distinct advantages of the DC Fan Filter Unit is its ability to interface with building automation systems. Because the motor is digitally controlled, the unit can be programmed to maintain a constant volume of air (CAV) even as the filter loads with particulates over time. This dynamic response ensures that your cleanroom’s laminar airflow remains consistent, protecting the sterile product beneath the unit regardless of the filter’s saturation level.

Filtration Integrity: The Role of HEPA H14 FFU Modules

The motor moves the air, but the filtration media purifies it. The HEPA H14 FFU is the most critical component of the assembly, serving as the final barrier against airborne contaminants.

Understanding H14 Filtration Efficiency

An H14 grade filter provides a 99.995% efficiency rating for particles as small as 0.3 microns. In the pharmaceutical sector, this is the standard for Grade A and Grade B cleanrooms. Our integration of this filtration class within an SS 304 DC FFU ensures that the air delivered to the point of use is ultra-clean.

Optimized Airflow Dynamics

Our FFU designs are optimized to promote laminar flow—the movement of air in uniform, parallel streams. By minimizing turbulence, we ensure that contaminants are effectively "swept" away from the critical work zone and directed towards the low-level return air grilles. This "air-sweeping" effect is vital for aseptic filling, capping, and the handling of open chemical reagents.

Technical Specifications for Mission-Critical Environments

For procurement managers, engineers, and facility consultants, technical transparency is essential. The following specifications represent the benchmark for our high-performance filtration modules.

Specialized Applications: SS 304 DC FFU for Pharma Labs

The requirements for a SS 304 DC FFU for Pharma Labs differ vastly from industrial or commercial HVAC standards. In the pharmaceutical industry, the FFU must comply with strict aseptic requirements.

Aseptic Filling and Capping Lines

In aseptic manufacturing, the FFU is positioned directly above the filling needles and conveyors. The stainless steel housing ensures that no corrosion or particulate shedding occurs over the exposed product. Furthermore, the low-vibration profile of the DC motor ensures that high-speed packaging machinery remains calibrated and precise.

Microbiology and Quality Control Laboratories

Microbiology labs often involve the handling of cultures and sensitive reagents. Our units provide the localized laminar airflow required for biosafety cabinets and laminar flow workbenches, ensuring that operators are protected from the samples and the samples are protected from ambient air.

Installation and Maintenance Considerations

The operational lifespan of your filtration infrastructure is heavily dependent on professional installation and regular maintenance. As a dedicated Cleanroom FFU Manufacturer, we provide end-to-end guidance to ensure your investment delivers maximum ROI.

Room-Side Replaceable (RSR) Filter Modules

Our SS Fan Filter Unit designs are available in RSR configurations. This is a critical feature for large-scale cleanrooms where removing the entire ceiling panel for filter maintenance would cause excessive downtime. With an RSR system, the HEPA filter can be removed from within the cleanroom, significantly reducing labor hours and maintaining the integrity of the ceiling grid.

Calibration and Validation Protocols

Post-installation, your SS 304 Cleanroom FFU system must be validated to comply with ISO 14644-1. We support our clients with:

DOP/PAO Testing: Scanning the filter face to ensure the seal and media are free of leaks.

Air Velocity Mapping: Verifying that the airflow across the room is uniform and meets the 0.45 m/s ± 20% tolerance.

Differential Pressure Monitoring: Setting up your Magnehelic gauges or digital sensors to monitor the FFU performance over time.

The Economic and Environmental Impact of Energy-Efficient FFUs

In the modern era of industrial sustainability, energy efficiency is a key performance indicator. While the initial capital expenditure of an EC Motor FFU is higher than an AC unit, the total cost of ownership (TCO) is significantly lower.

ROI through Reduced Energy Consumption

By shifting to DC-driven motors, facilities can achieve operational savings that recover the initial investment cost within 18 to 24 months. Additionally, because these motors run cooler, they do not contribute to the heat gain in the cleanroom, thereby reducing the burden on your primary AHU (Air Handling Unit) cooling coils.

Longevity and Reduced Downtime

The brushless nature of our DC motors translates to a longer operational life—often exceeding 50,000 hours of continuous service. This means fewer maintenance interventions, fewer spare parts, and less downtime for your production schedule. When you choose a Stainless Steel Fan Filter Unit, you are choosing durability that mirrors the lifecycle of the cleanroom itself.

Why Rayshen Environmental?

Choosing a supplier is a partnership in quality. At Rayshen, we view ourselves as stakeholders in your facility’s compliance and productivity. We combine the precision of modern electronics with the timeless durability of stainless steel fabrication.

Custom Fabrication Capabilities

We recognize that facility layouts are rarely uniform. Our engineering team specializes in custom dimensions, bespoke frame configurations, and specialized sealing methods. If your facility has specific spatial constraints, we can design an SS Fan Filter Unit that fits your grid perfectly, eliminating the need for expensive structural modifications.

Commitment to Technical Transparency

Every unit we deliver comes with a comprehensive data sheet, electrical schematics, and testing reports. We believe in empowering our clients with the technical knowledge to monitor and maintain their filtration assets effectively.

Conclusion: Securing Your Cleanroom’s Future

The transition to high-performance, stainless-steel filtration is a critical step for any facility moving toward modern compliance standards. Whether you are managing a pharmaceutical manufacturing plant, a biotech research lab, or a sterile electronics assembly line, the SS 304 Cleanroom FFU offers the durability, efficiency, and purity required for today’s rigorous manufacturing environments.

By integrating EC motor technology, H14 filtration, and premium SS 304 construction, you are not just installing a piece of hardware; you are establishing an unwavering standard for quality. Trust Rayshen to provide the engineering backbone your cleanroom deserves.

Take the Next Step in Air Purity

Do you have a project in the design phase or are you planning a retrofit of your existing cleanroom? Contact our engineering team today to request a technical proposal, a detailed Bill of Quantities (BOQ), or to discuss the specific SS 304 DC FFU for Pharma Labs requirements that align with your upcoming audit cycle.
