Hepa Housing Module

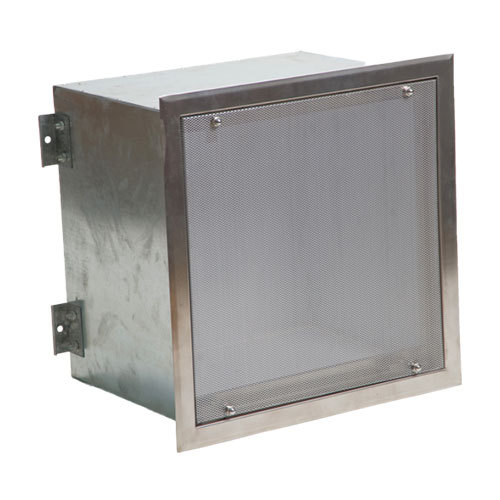

Certified HEPA Filter Housing: Precision Terminal Air Modules for Sterile Cleanrooms

In the architecture of a high-performance controlled environment, the HEPA Filter Housing represents the final, critical checkpoint for air purity. Positioned as the terminal interface between the facility's HVAC infrastructure and the clean zone, this module ensures that every cubic foot of air entering your workspace is scrubbed of 99.99% of contaminants. At Rayshen, a leading HEPA Housing Manufacturer in Delhi NCR, we engineer our modules to exceed the rigorous demands of ISO 14644-1, USFDA, and WHO-GMP guidelines.

The modern Terminal HEPA Housing is no longer just a metal box; it is a precision-engineered containment system. Whether you are outfitting a Pharma Grade HEPA Filter Box or a high-security biotech lab, the choice of housing determines the ease of validation, the reliability of the seal, and the overall longevity of your filtration system.

The Engineering of the Cleanroom HEPA Module

A Cleanroom HEPA Module must perform under constant static pressure while maintaining an airtight seal. Any bypass—air leaking around the filter rather than through it—compromises the entire sterile environment.

SS HEPA Housing: The Gold Standard for Hygiene

In pharmaceutical and healthcare sectors, the SS HEPA Housing (Stainless Steel 304 or 316L) is the non-negotiable choice.

• Corrosion Resistance: SS 304 prevents rust even when exposed to high-humidity air or harsh chemical disinfectants like Vaporized Hydrogen Peroxide (VHP).
• Non-Shedding Surface: Unlike painted GI, stainless steel will not chip or flake, ensuring the housing itself does not become a source of contamination.
• Seamless Construction: Our housings are TIG-welded and polished to ensure smooth surfaces that prevent the accumulation of microbial bio-burden.

Leak-Proof Sealing Systems

The integrity of a Terminal HEPA Housing depends on the interface between the filter frame and the housing.

• Gasket Seal: Uses high-compression EPDM gaskets for reliable mechanical sealing.
• Gel Seal (Knife-Edge): Features a specialized channel filled with silicone gel. The "knife-edge" of the housing sinks into the gel, creating a 100% airtight, fluid seal—perfect for Grade A and Grade B zones.

Advanced Validation: DOP Test HEPA Filter Housing

Regulatory audits require periodic verification of filter integrity. A DOP Test HEPA Filter Housing is engineered specifically to make this process seamless and non-intrusive.

Integrated Aerosol Challenge Ports

Our housings feature built-in upstream aerosol ports. This allows validation engineers to introduce DOP (Dispersed Oil Particulate) or PAO (Poly Alpha Olefin) challenges directly into the module. By having integrated ports, you eliminate the need to drill holes in your ductwork or access the "dirty" side of the ceiling plenum, maintaining room integrity during testing.

Downstream Sampling Ports

To verify that no leaks exist, a photometer probe is used on the room side. Our Cleanroom HEPA Module design provides clear, unobstructed access to the entire filter face and seal area, ensuring that every square centimeter can be scanned for potential bypass.

Configuration Flexibility: Ceiling Mounted and Side Feed Modules

Cleanroom designs vary based on available plenum height and ducting layouts. As a versatile HEPA Housing Manufacturer in Delhi NCR, Rayshen offers multiple airflow configurations to suit your building’s specific needs.

Ceiling Mounted HEPA Housing Module (Top Feed)

The Ceiling Mounted HEPA Housing Module with a top-feed spigot is the standard for new facilities with ample above-ceiling space. It provides the most balanced air distribution, ensuring that the air hits the HEPA media uniformly for perfect laminar flow.

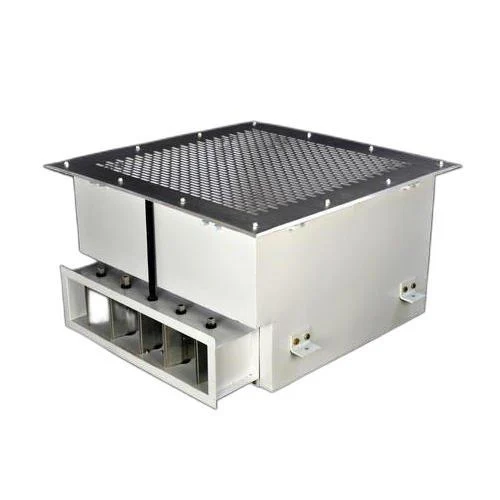

Side Feed HEPA Housing Module

In retrofits or facilities with low ceiling clearance, the Side Feed HEPA Housing Module is a technical necessity. By placing the duct connection on the side of the box, the overall height of the module is significantly reduced. This allows for high-efficiency filtration even in rooms where vertical space is at a premium.

Precision Control: HEPA Housing with Damper Price & Value

Air balancing is a critical part of cleanroom commissioning. A HEPA Housing with Damper allows facility managers to fine-tune the airflow to achieve the exact air change rates (ACR) required for compliance.

• Internal Damper Control: Our units feature a room-side adjustable damper. This means you can balance the airflow from inside the cleanroom using a simple hex key or adjustment knob, without ever breaking the sterile seal of the ceiling.
• Evaluating Price vs. Performance: While the HEPA Housing with Damper Price may be slightly higher than a standard box, the savings in commissioning time and the precision of air balancing provide a much higher return on investment (ROI) over the life of the facility.

Specialized Applications: From Pharma Labs to Hospitals

The Pharma Grade HEPA Filter Box is the backbone of high-stakes industries where air quality is a direct component of product safety.

Pharmaceutical & Biotech Cleanrooms

In aseptic filling lines and vaccine production, the air must be free of all microbial life. Our Terminal HEPA Housing provides the final barrier, ensuring that the air supplied to these critical zones is purified to the highest international standards.

Hospital Operating Theaters and Isolation Wards

Protecting surgical sites from airborne pathogens is a clinical priority. Our Ceiling Mounted HEPA Housing Module is used to create a sterile "plenum" over operating tables, ensuring a continuous downward flow of ultra-pure air that sweeps contaminants away from the patient.

Why Choose Rayshen: Your HEPA Housing Manufacturer in Delhi NCR

Selecting a local manufacturer with world-class engineering capabilities offers several strategic advantages:

• Custom Engineering: We provide Terminal HEPA Housings in custom sizes to fit unique duct diameters or specialized ceiling grids.
• Quality Assurance: Every Cleanroom HEPA Module undergoes a factory leak test to ensure the structural integrity of the welds and seals.

• Rapid Support: Being based in the Delhi NCR region, we offer fast lead times and on-ground technical support for installation and validation.

Installation and Long-Term Maintenance

To ensure your HEPA Filter Housing remains a reliable component of your infrastructure, we recommend following these professional protocols:

Proper Duct Connection

Ensure all spigot connections are sealed with high-grade, non-outgassing silicone. This prevents unfiltered air from being sucked into the housing via the venture effect.

Regular Validation

Perform a DOP Test at least once every 6 to 12 months. This not only verifies the filter but also checks the integrity of the SS HEPA Housing seals and joints.

Cleaning the Diffuser Plate

The perforated diffuser plate should be removed and cleaned periodically. Our "Tool-Free" or "Quarter-Turn" fasteners make this process easy for janitorial staff, ensuring that air distribution remains uniform and unobstructed.

Conclusion: The Definitive Choice for Cleanroom Air Supply

The HEPA Filter Housing is the silent guardian of your cleanroom’s integrity. By investing in a Pharma Grade HEPA Filter Box from Rayshen, you are choosing a product that combines the durability of SS 304 with the precision of integrated DOP testing and airflow damping.

Secure Your Sterile Facility Today

Don’t leave your air quality to chance. Contact Rayshen, the premier HEPA Housing Manufacturer in Delhi NCR, for a technical consultation. Our engineers are ready to help you specify the perfect Terminal HEPA Housing or Side Feed HEPA Housing Module for your next project.
