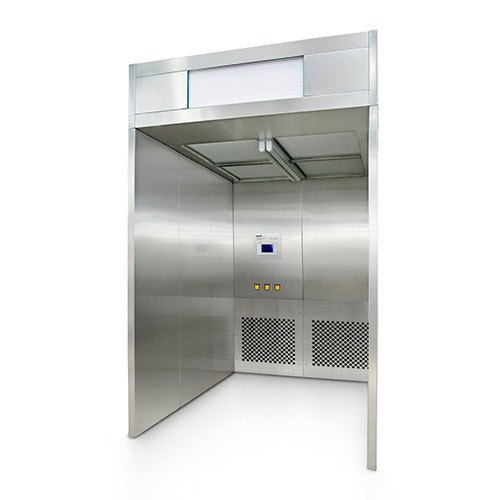

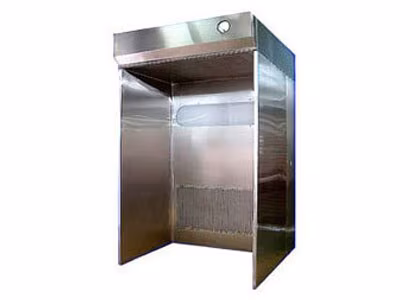

Dispensing Booth/ Clean Booth

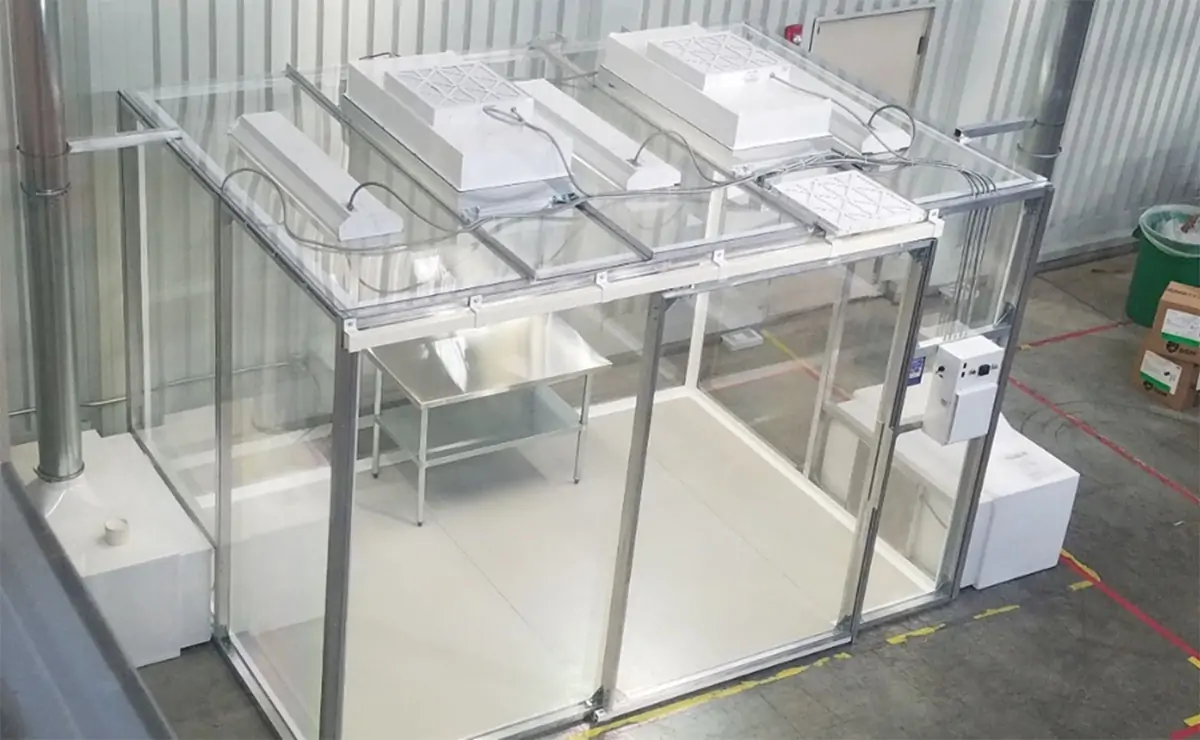

The modular, highly effective controlled environments known as Rayshen Cleanroom Booths were created especially to offer targeted air purification for crucial laboratory and production processes. These clean booths are used and suited to various industries, including pharmaceuticals, biotechnology equipment, electronics, medical equipment, food processing, and semiconductor manufacturing.
Rayshen booths are built with a sturdy frame made of powder-coated iron or stainless steel, and they easily interface with cutting-edge Fan Filter Units (FFUs) and HEPA filtration systems to provide steady, incredibly clean airflow. Because they support cleanliness standards from ISO Class 5 (Class 100) to ISO Class 9 (Class 300,000), they are suitable for a range of cleanroom applications.
The design of the enclosure creates a fully contained, contaminant-free clean zone, which is made up of cold-rolled steel or stainless steel roof panels, clear acrylic wall panels, and anti-static soft PVC retainers. The booths are designed to avoid particle infiltration and to ensure positive pressure flow, which can provide a trusted environment for careful assembly and manufacturing processes.
Delivery time is greatly decreased by the modular design, which is simple to install.
Adaptable and portable, ideal for establishing tiny clean areas.
It can be scaled to higher use, be highly reusable, modular, and easy to increase the cleanliness rate.
Compared to ultra-clean workbenches, it offers more usable internal space; compared to traditional cleanrooms, it is cost-effective, quick to install, and has no height restrictions.
1. Modular design, easy to install, significantly reducing delivery time.
2. Portable and flexible, suitable for creating small clean zones.
3. Modular structure, easy to upgrade cleanliness levels, scalable, and highly reusable.
4. Compared to ultra-clean workbenches, it offers more usable internal space; compared to traditional cleanrooms, it is cost-effective, quick to install, and has no height restrictions.
Standard Clean Booth Configuration:
Frame: Made of stainless steel or powder-coated iron square tubes, stable, aesthetic, rust-free, and dust-free.
Anti-static curtains: Provide excellent anti-static performance, high transparency, clear separation, good flexibility, no deformation, and aging resistance.
Dust-proof purification panels: Used for enclosed structures.
Clean hood: Made of cold-rolled steel with electrostatic spraying.
Lighting: Uses cleanroom-specific purification lights, which are dust-free.
Fan Filter Unit (FFU): Equipped with a low-noise, high-efficiency fan, featuring long lifespan, low noise, maintenance-free operation, low vibration, and adjustable speed.
HEPA filter: Installed at the final stage of the air supply system, featuring low initial resistance, high dust-holding capacity, high filtration efficiency, long lifespan, and easy replacement.
Note: Custom non-standard products can be made according to customer requirements.
|
|---|
- Cleanroom Classes Available: ISO Class 5 to ISO Class 9
- Filtration Options: HEPA (99.99%) or ULPA (99.9995%)
- Modular Construction: Easy installation and scalability
- Quiet Operation: Noise level lower than 60 decibels
- Size Options: Available in a range of sizes and combinations
