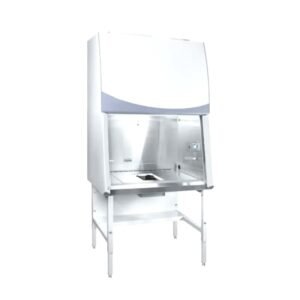

NSF/ANSI 49 Biosafety Cabinet
Rayshen provides a range of Bio-safety Cabinets to suit your needs. To provide you a safe solution that you can trust in protecting the operator, product and environment. Also, the range includes cabinets that conforms to JIS Standards, a type-approved models of JACA and also a variety of US NSF compliant machines(NSF/ANSI 49-2012). Key benefits: Ergonomical Energy-saving stable efficient air flow pattern multi-function operation panel NSF 49 certification is possible.
Type | Model No. | External Dimension (mm) | Internal Dimension (mm) | Workspace Airflow Velocity (m/sec) | Electrical | Standards |
|---|---|---|---|---|---|---|
II A | BHC-1000 II A | W1080 x D800 x H1945 | W1000 x D555 x H640 | 0.31 ~ 0.37 | AC 100V 1φ 50/60Hz | Conforms to JIS standards and JACA type certified |
BHC-1300 II A | W1380 x D800 x H1945 | W1300 x D555 x H640 | 0.32 ~ 0.38 | AC 100V 1φ 50/60Hz | ||
II A2 | BHC-1307IIA2 | W1500 x D792 x H2040 | W1300 x D600 x H640 | 0.44 ± 0.025 | AC 100V 1φ 50/60Hz | Conforms to JIS standards and JACA type certified |
BHC-1007IIA2 | 0.44 ± 0.025 | JIS Standard Self-declaration Product | ||||
BHC-1607IIA2 | 0.38 ± 0.025 | |||||
BHC-1907IIA2 | 0.41 ± 0.025 | |||||
BHC-1307IIA2 | – | |||||
BSC-1301IIA2 | W1500 x D790 x H2050 | W1270 x D600 x H620 | 0.35 | AC115V 1φ 60Hz | NSF/ANSI 49 | |
BSC-1302IIA2 | AC230V 1φ 50/60Hz |
Electrical requirements can be amended to the customer’s requirements.
