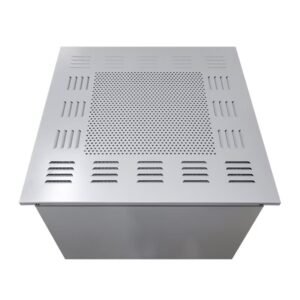

HEPA Terminal Air Diffuser / HEPA BOX
HEPA Terminal Air Diffuser / HEPA BOX
The HEPA air supply outlet is made of high-quality cold-rolled steel with an electrostatic powder coating. It includes a plenum box, HEPA filter, and diffuser plate.
It is widely used in both renovated and newly constructed cleanrooms at various cleanliness levels, typically installed in cleanroom ceilings as a terminal HEPA filtration unit. It features low investment costs and easy installation.
| Model | External Dimensions | HEPA Filter Dimensions | Rated Airflow | Inlet Size | Ceiling Installation Size | |
| Side Inlet | Top Inlet | (L×W×H mm) | (mm) | (m³/h) | (mm) | (mm) |
| FST-320 | FST-320D | 370×370×500 | 320×320×220 | 500 | 200×200 | 380×380 |
| FST-484 | FST-484D | 534×534×500 | 484×484×220 | 1000 | 320×200 | 544×544 |
| FST-610 | FST-610D | 660×660×500 | 610×610×150 | 1000 | 320×250 | 670×670 |
| FST-630 | FST-630D | 680×680×550 | 630×630×220 | 1500 | 320×250 | 690×690 |
| FST-915 | FST-915D | 965×660×500 | 915×610×150 | 2000 | 500×250 | 975×670 |
| FST-1220 | FST-1220D | 1270×660×500 | 1220×610×150 | 2500 | 630×250 | 1280×670 |
| FST-1260 | FST-1260D | 1310×680×550 | 1260×630×220 | 3000 | 630×250 | 1320×690 |
| Note: Custom sizes available upon request. | ||||||
